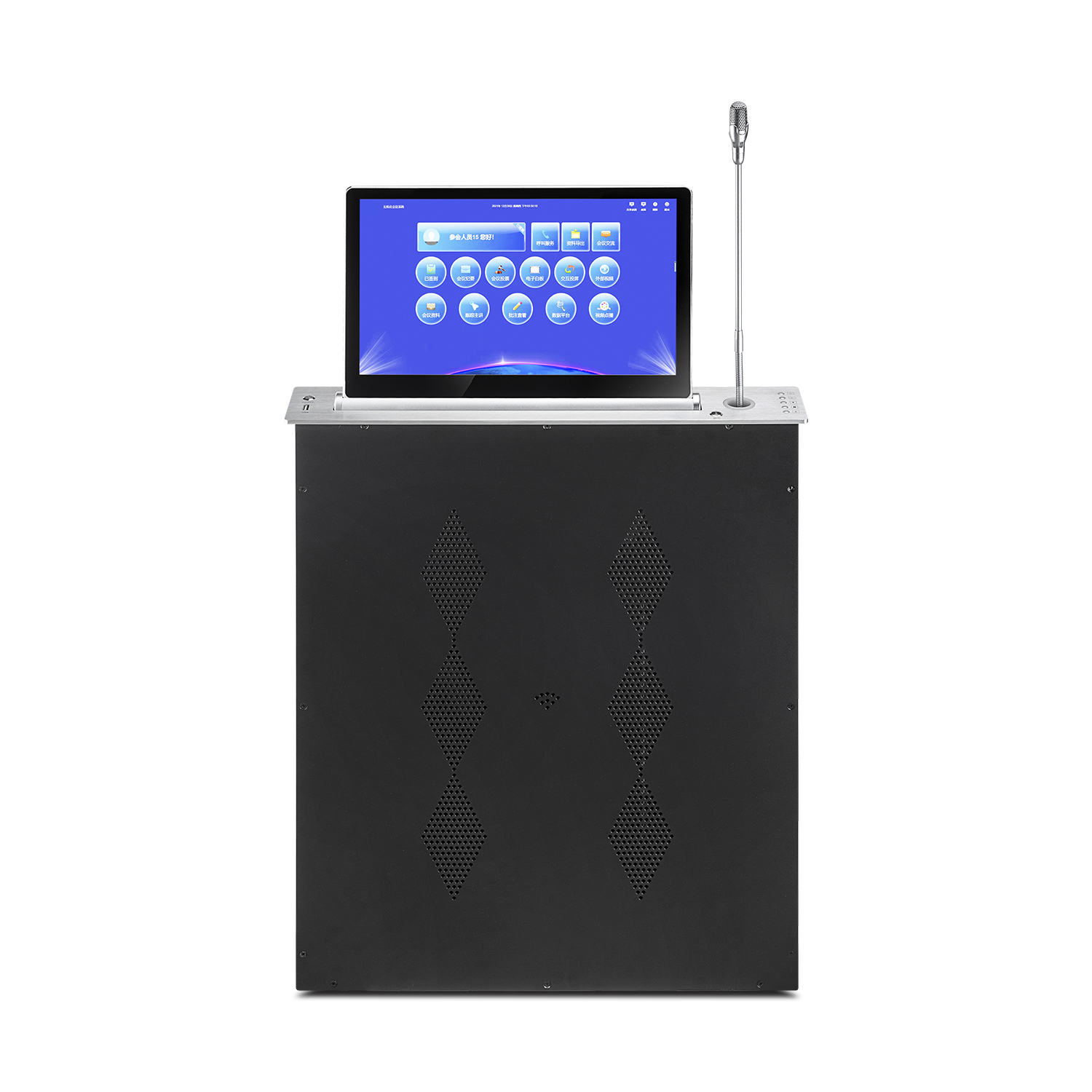

Thiết bị đầu cuối nâng hạ OM-156CM

Thiết bị đầu cuối nâng hạ OM-156CM

Product Overview:
1. The touch paperless intelligent desktop adopts a 15.6-inch high-definition widescreen design, which fully conforms to the comfortable visual effect of human sitting posture at the conference site. The height is strictly designed according to the angle that does not obstruct the line of sight, and it is equipped with an integrated lifter. It adopts seamless and backboard connection, highlighting the high-end and atmospheric product; Paired with a paperless conference terminal, it perfectly achieves powerful interactive paperless conference functions.
Product Features:
1. The shell of the touch ultra-thin high-definition display screen is made of aluminum alloy material, with a surface treatment of sandblasting and anodizing. The ultra-thin LCD screen design has an edge thickness of only 6.8mm.
2. Adopting a 15.6-inch multi-point capacitive touch high-definition LCD screen with a resolution of 1920 × 1080dpi, the screen angle is IPS full view LCD screen, and the display effect is clear and bright.
3. The elevator panel is made of aviation aluminum material, with anodized wire drawing process and ultra-thin design. The panel width is only 8.8mm.
4. The ultra-thin high-definition display screen and ultra-thin circular axis lifter have no exposed connecting wires, backboards, or screws, ensuring that the touch screen of the lifting display is overall beautiful and elegant.
5. The elevator supports manual control, software control, and manual control. The control software supports PC installation and is compatible with commonly used operating systems. It can be uniformly controlled or grouped to control the elevator’s movement states such as rising, pausing, and falling.
6. The elevator panel has the functions of rising, pausing, falling, tilting forward, and tilting backward; Multimedia conference terminal switch interface; The lifter supports automatic elevation angle of 0-35 degrees, ensuring the best viewing angle and touch comfort of the monitor.
7. Equipped with power protection function, if there is no operation for a few minutes after the screen drops, it will automatically shut down for protection; The desktop panel of the elevator is pre-set with a USB information interface, supporting the import and export of document materials, with a display light for computer on/off, constantly keeping track of the computer status to avoid situations where the computer is accidentally turned on without knowing.
Product Parameters:
1. Display screen size: 15.6 inches
2. Display ratio: 16:9
3. Physical resolution: 1920 × 1080
4. Display screen angle: IPS full view angle
5. Screen type: capacitive screen, 10 point touch screen
6. Interface: 1 x HDMI, 1 x USB 2.0
7. Working environment: Environmental temperature: 5 ℃~40 ℃; Relative humidity: ≥ 75%
8. Working power consumption: AC~220V/50Hz/30W
9. Panel size: 488 × 88 × 5mm (length × height × thickness)
10. Display screen size: 378 × 237 × 3.8mm (length × height × thickness)
11. Color: Silver/Black Available
