Màn hình cảm ứng mạng IP 10,1 inch tích hợp micro OM-IP10B

Màn hình cảm ứng mạng IP 10,1 inch tích hợp micro OM-IP10B

Product Overview:

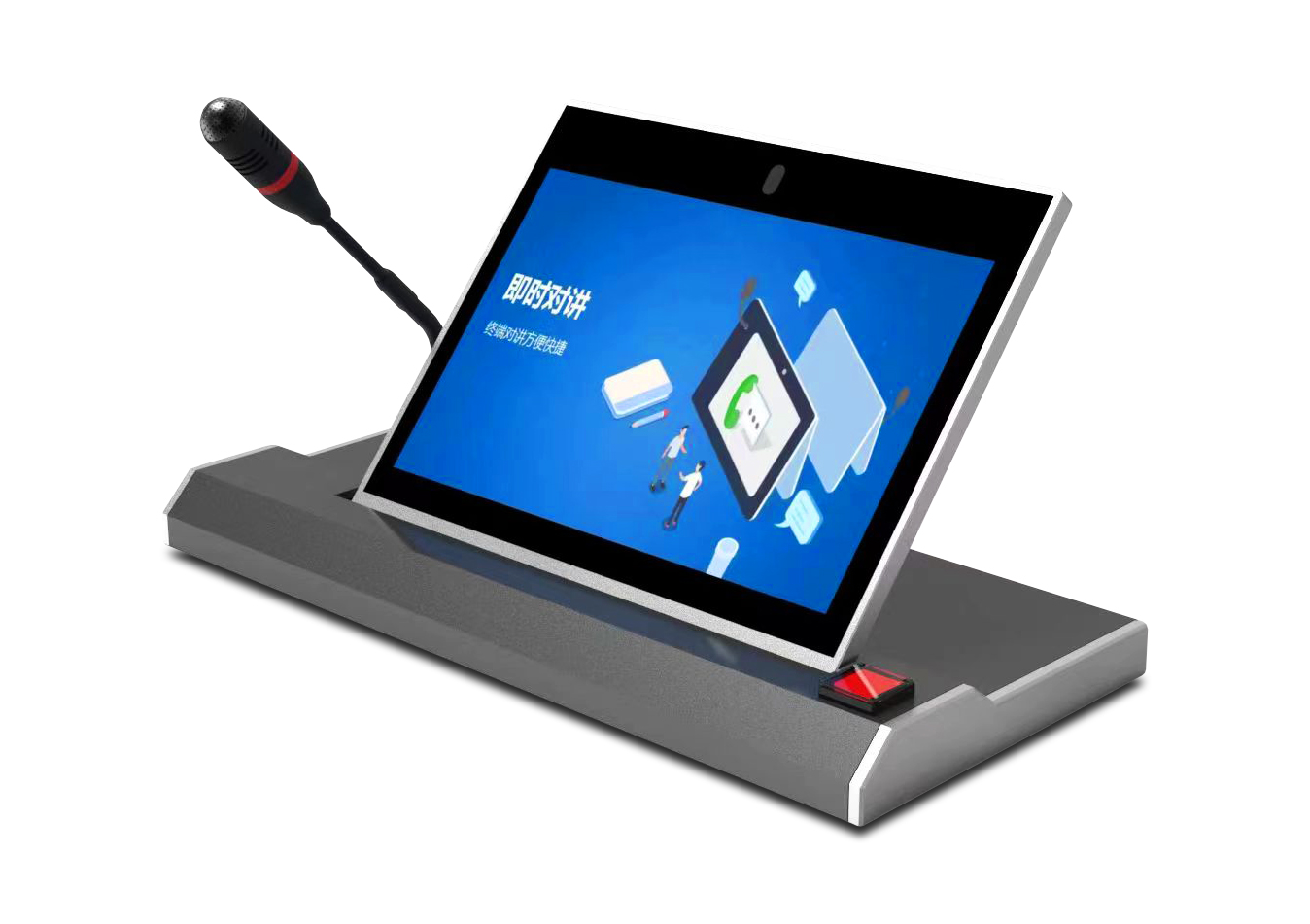

1. 10.1-inch desktop console, supports adjusting screen angle for better viewing angle; Support initiating broadcasts and two-way intercoms;
2. ARM architecture chip is adopted, with stable performance and smooth operation, supporting LAN and Internet access. specific parameters
1. Adopting a desktop microphone design, supporting adjustment of screen visual angle, with a 10.1-inch capacitive touch display screen; Support calling broadcasting and initiating intercom through touch; Support calling terminals and multiple terminals, calling zones and multiple zones, and calling the entire area for broadcasting;
2. Built in ≥ 1 network hardware audio decoding module, with 1 RJ45 network interface and a transmission rate of 100Mbps;
3. Equipped with a built-in 200W high-definition camera, supporting two-way visual intercom function, and a built-in 3W full range speaker for two-way communication.
4. Supports ≥ 1 3.5mm audio line input and supports capture and playback functions; It has ≥ 1 3.5mm audio line output and can be connected to an external power amplifier. (Provide supporting diagrams for the input and output interfaces of the equipment circuit)
5. Support direct operation of calling or intercom to any terminal, support broadcasting call function through microphone, broadcasting delay less than 100 milliseconds, support line input collection and USB broadcasting.
6. Support multiple call strategies, including manual transfer, unresponsive transfer, busy transfer, and shutdown transfer; Automatic answering, manual answering.
7. Support user permission settings, allowing for the management and display of specified partitions and terminals;
8. Support login password verification and enable/disable login password verification;
9. Support the selection of enabling and disabling broadcast prompt sounds (provide interface screenshots);
10. Support four shortcut keys for emergency broadcasting, warning broadcasting, natural disaster broadcasting, and earthquake broadcasting. Long press the shortcut keys to quickly initiate the set broadcasting tasks (provide interface screenshots);
11. It has ≥ 1 short-circuit output interface and ≥ 1 short-circuit input interface. (Provide evidence diagram of equipment short-circuit input and output interfaces)
12. Support web modification and configuration of microphone parameters, including local IP, server IP, user permission parameters, etc. (provide software interface screenshots);
13. Support customizing whether the paging microphone receives broadcasts, which can be manually turned on and off (provide software interface screenshots);
14. Support broadcasting and intercom shortcut key settings;
15. Power supply: 12V/1.5A
16. Network communication protocols: TCP/IP, UDP, ARP, ICMP, IGMP
17. Audio encoding format: WAV
18. Signal to noise ratio, frequency response>90dB, 20Hz-16Khz
19. Display screen: TFT 7 “LCD 800 * 480
20. Camera: 1080P
21. Working temperature and humidity -10 ℃~55 ℃, ≤ 90% (no condensation)
