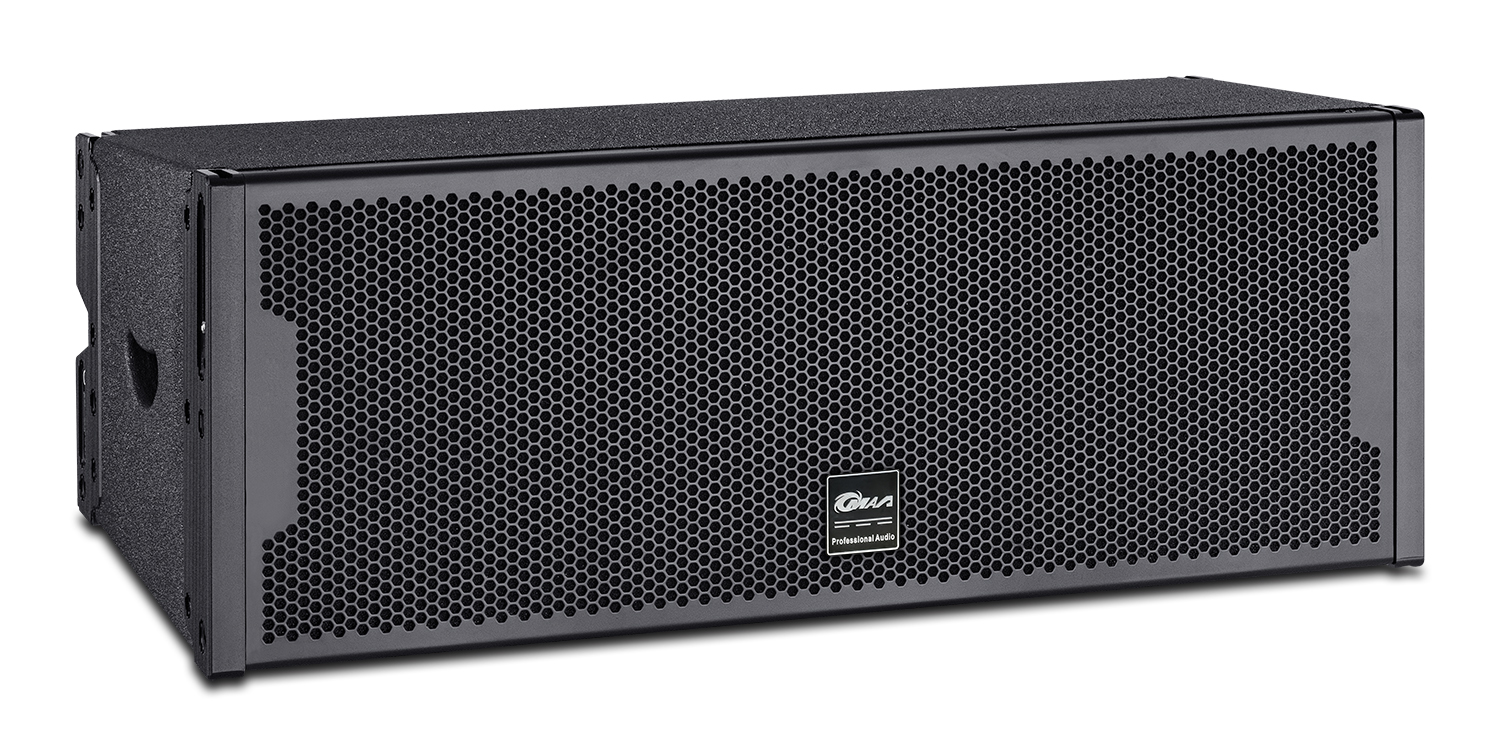

Loa line array LA-212

Loa line array LA-212

★ This series of dual 12 inch linear array speakers is a medium to large, high-precision linear array speaker system,
★ With great dynamic capacity, precise phase tuning on components, and professionally designed linear horn applications, it can perfectly reproduce spectral signals within the specified range.
★ Equipped with two 12 inch imported paper basin material bass units and a large throat 75 core horn treble, carefully tuned by an engineering team to produce master level sound quality effects. Good low-frequency elasticity, clear and transparent mid frequency with distinct layers, bright high frequencies, and long range.

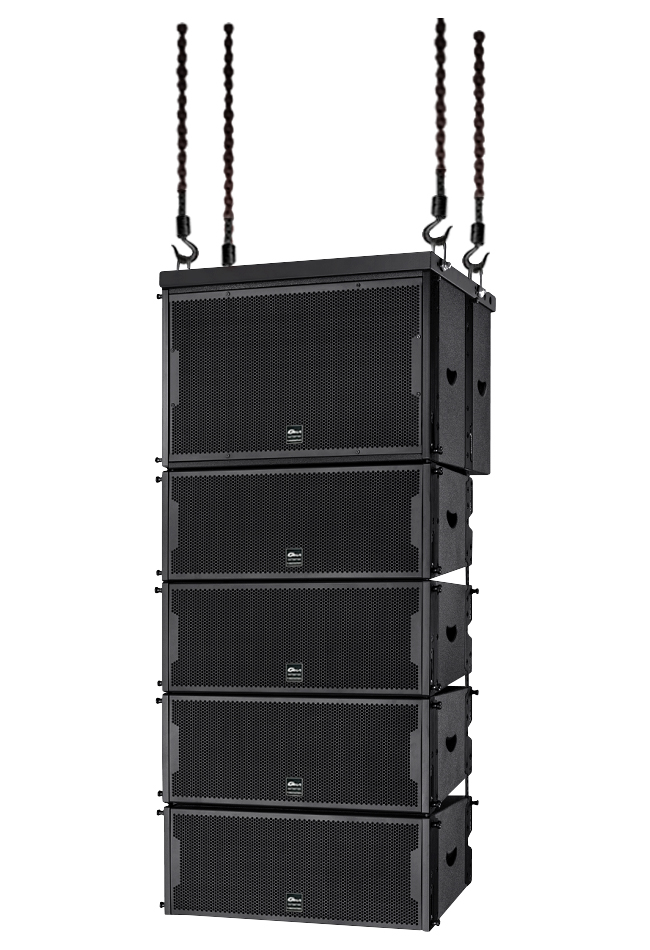

★ The suspension system adopts the latest ergonomics and mechanical design, making the installation of the entire system fast and safe.
★ The box is made of high-quality birch multi-layer plywood and coated with wear-resistant, environmentally friendly water-based and environmentally friendly paint.
★ Applicable venues: banquet halls, stage performance systems, theaters, music halls, performance centers, conference centers
★ This series of dual 12 inch linear array systems has a great dynamic capacity, with phase correction on components and professionally designed linear horn applications that can perfectly reproduce spectral signals within a specified range. The unit adopts 2 high-quality 12 inch full range speakers, with good low-frequency elasticity, clear and distinct mid frequency levels, bright high frequencies, and long range. The suspension system adopts the latest ergonomics and mechanical design, making the installation of the entire system fast and safe. The box is made of high-quality birch multi-layer plywood and coated with wear-resistant, environmentally friendly water-based and environmentally friendly paint. Suitable for professional stage performance systems, bar sound systems, banquet halls, multifunctional lecture halls, and auditorium opera houses and other sound system projects.
Performance parameters:
Frequency response: 45Hz-18KHz ± 3dB
Sensitivity: 106dB ± 3dB
Maximum sound pressure: 130db ± 3dB
Impedance: 8 Ω
Rated power: 800W
Bass: 2×12 “(300mm)
High note: 1 x 1.35 “(75mm)
Coverage angle: 120 °× 20 °
Connector: 2 x Speakon NL4
Connection method: ± 1… LHF
System type: Built in frequency divider
Box type: trapezoidal box material: imported high-quality birch multi-layer plywood
Surface treatment: Black polyurethane (water-based environmentally friendly topcoat) spray coating;
Mesh: Black porous powder coated steel mesh and transparent speaker mesh
Dimensions: Width 950 x Depth 390 x Height 355mm
